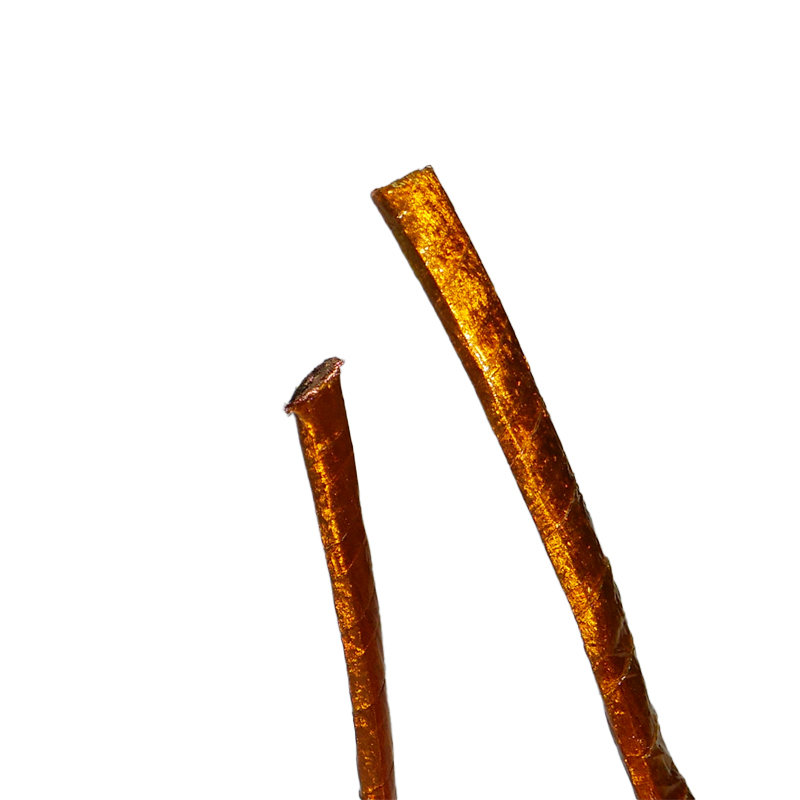

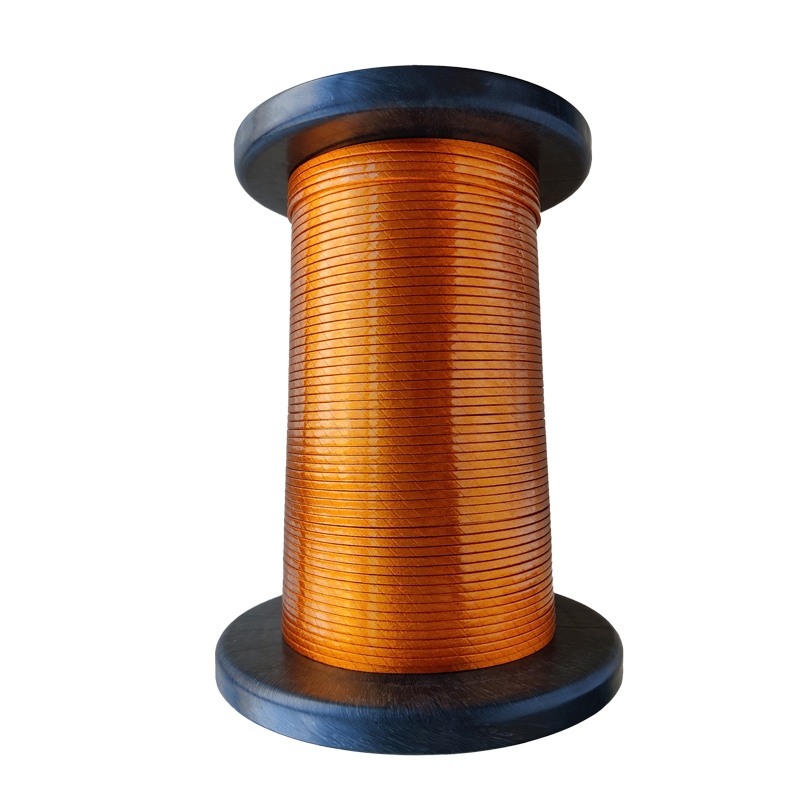

Litz silig qalloocan

Our Huaying Twisted Litz Wire waa wax soo saarka dhabta ah ee heerka warshadaha ay soo saartay Huizhou Huaying Electronic Technology Co., Ltd. Waxaa si weyn loo isticmaalo ma aha oo kaliya gudaha laakiin sidoo kale caalami ah, noo kasbado liiska dheer macaamiisha daacad ah. Waa maxay sababta ay caan u tahay? Ugu horreyntii sababtoo ah siliggayagu wuxuu si buuxda u waafaqsan yahay heerarka badbaadada UL iyo VDE, oo xitaa la kulmaya shuruudaha ROHS ee aan halogen-ka lahayn. Laga soo bilaabo xulashada alaabta ceeriin ilaa qallooca iyo wax soo saarka, tallaabo kasta waxaa loo fuliyaa si waafaqsan heerarka adag ee warshadaha. Waxaan mudnaanta siinaa macaamiishayada si taxadar leh. Intaa waxa dheer, waxaanu haynaa in ka badan toban shati, anagoo hubinayna arrimo tayo leh. Macaamiil badan oo daacad ah ayaa yidhaahda, "Isticmaalka siliggayaga waa wax lagu kalsoonaan karo." Waxaan si daacad ah kuugu dhiirigelinaynaa inaad tijaabiso; nagama khaldami kartid!

Soo dir weydiin

Sharaxaada Alaabta

Tilmaamaha Alaabta

Xariirkayaga Huaying Twisted Litz Wire wuxuu bixiyaa fursado balaadhan oo kala duwan. Dhexroorka ugu fiican ee la heli karo waa 0.10mm, awood u leh inuu maroojiyo xargaha 50 ilaa 2000 xargaha. Dhexroorka 0.05mm ee khafiifka ah wuxuu u oggolaanayaa in la leexiyo xargaha 50 ilaa 3000 xargaha. Iyadoo aan loo eegin baahida gaarka ah ee macaamilka, waxaan buuxin karnaa shuruudahan. Dhexroorka dibadda ee alaabta la dhammeeyay ayaa sidoo kale ah mid dabacsan, oo u dhexeysa 0.1mm ilaa 8mm. Haddii macaamiishu ay leeyihiin shuruudo gaar ah oo loogu talagalay ballaca ama dhumucda, sida u baahan cabbir khafiif ah si loogu rakibo aaladaha caafimaadka ee yaryar, waxaan buuxin karnaa shuruudahan. Waxaan sidoo kale si taxadar leh u baarnay xooggayaga dielectric, muujinta in alaabtayadu aysan soo bandhigin wax burburin ah xitaa jawiga sare ee tamarta iyo tamarta sare, iyaga oo kasbanaya kalsoonida macaamiisheena.

Faa'iidooyinka Muhiimka ah ee Alaabta

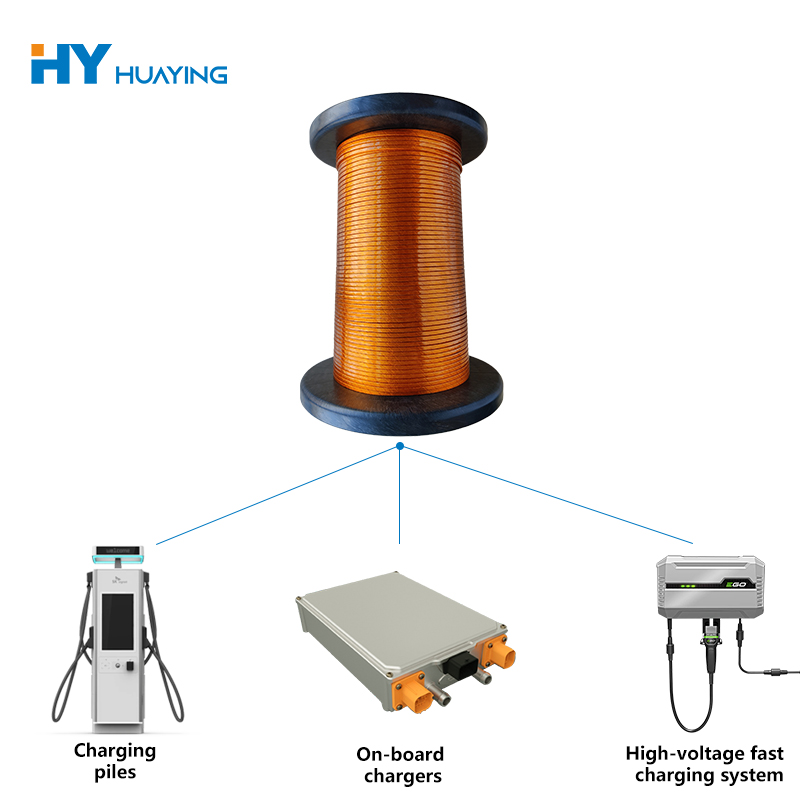

Tani Huaying Twisted Litz Wire waxay ku faantaa heer sare oo buuxin ah, taas oo u oggolaanaysa gariiradaha ku dhaawacan inay qaadaan qulqulo sare iyada oo aan kulayl xad dhaaf ah lahayn, xitaa iyada oo ay saaran yihiin culaysyo sarreeya. Intaa waxaa dheer, waxay isticmaashaa silig afar gees ah. Isla aagga isgoysyada, siligga labajibbaaran wuxuu leeyahay meel ka weyn silig wareegsan, kaas oo yareynaya saameynta maqaarka, si weyn u yareynaya khasaaraha soo noqnoqda ee hadda jira iyo hagaajinta kulaylka. Tani waxay hubinaysaa heerkulka hawlgalka ee xasiloon ee aaladaha elektiroonigga ah ee baabuurta muddo dheer. Intaa waxaa dheer, raad-raacyada is haysta ee alaabtayada ayaa si gaar ah ugu habboon codsiyada u baahan cabbirka ugu yar, sida kaydinta indhaha. Intaa waxaa dheer, heerkulkeeda iyo iska caabbinta shucaaca waxay gaadhaan 220 ° C, taas oo ka dhigaysa mid ku habboon in loo isticmaalo jawiga heerkulka sare ee warshadaha. Iska caabbinta shucaaca waxay sidoo kale hubisaa hawlgalka xasilloon ee qalabka caafimaadka ee gaarka ah, taasoo keentay codsiyo badan oo kala duwan.

Dayactirka alaabta

Dayactirka maalinlaha ah ee Huaying Twisted Litz Wire waa mid toos ah; si fudud u fiirso faahfaahin yar oo yar. Markaad kaydinayso, xasuuso inaad fiilooyinka ku ilaaliso meel engegan oo hawo fiican leh oo ka fog saliidda, wasakhda, iyo dareeraha wasakhaysan. Haddii aad qorsheyneyso inaad kaydiso muddo dheer, waxaa lagugula talinayaa inaad si adag ugu duubto fiilooyinka bac xiran si looga hortago inuu qoyaanka soo galo. Tani waxay si gaar ah run u tahay xilliyada roobabka ee koonfurta Shiinaha, marka hawadu ay qoyan tahay oo ay si fudud u dhaawici karto waxqabadka siliga. Haddii aad u baahan tahay inaad jarto fiilooyinka, hubi inaad isticmaasho xargaha go'an. Ha isticmaalin maqasyada caadiga ah si aad u gooyso. Haddii kale, xargaha siliggu qalloocan ayaa si fudud u kala go'i doona, taasoo keenaysa dhibaatooyin marka la isku xidho hadhow. Sidoo kale, markaad kaxayso dahaarka, ka taxaddar inaadan jebin siliga naxaasta ah. Waxaa lagu talinayaa in la isticmaalo qalab go'an oo xadhiga silig oo raac shuruudaha qalabka; ha iska dhigin mid aad u dheer ama aad u gaaban.

tilmaamo	dulqaadka kaari	mitir iska caabin		FIW4 dhexroor dibadda mm		FIW5 dhexroor dibadda mm		FIW6 dhexroor dibadda mm		FIW7 dhexroor dibadda mm		FIW8 dhexroor dibadda mm		FIW9 dhexroor dibadda mm
mm	mm	min	max	min	max	min	max	min	max	min	max	min	max	min	max
0.050	±0.002	7.9220	9.4890	0.075	0.085	0.085	0.095	0.095	0.105	0.106	0.116	--	--	--	--
0.063	±0.002	5.0450	5.9220	0.090	0.101	0.102 0.114		0.114	0.126	0.127	0.139	--	--	--	--
0.070	±0.003	4.0790	4.8900	0.098	0.110	0.111	0.123	0.124	0.136	0.137	0.149	0.150	0.162	0.163	0.175
0.080	±0.003	3.1330	3.7030	0.109	0.122	0.123	0.136	0.137	0.150	0.151	0.164	0.165	0.178	0.179	0.192
0.090	±0.003	2.4950	2.9000	0.121	0.134	0.135	0.148	0.149	0.162	0.163	0.176	0.177	0.190	0.191	0.204
0.100	±0.003	2.0340	2.3330	0.133	0.148	0.149	0.164	0.165	0.180	0.181	0.196	0.197	0.212	0.213	0.228
0.112	±0.003	1.6330	1.8480	0.148	0.164	0.165	0.181	0.182	0.198	0.199	0.215	0.216	0.232	0.233	0.249
0.114	±0.003	1.5760	1.7820	0.150	0.166	0.167	0.183	0.184	0.200	0.201	0.217	0.218	0.234	0.235	0.251
0.120	±0.003	1.4260	1.6030	0.159	0.176	0.177	0.194	0.195	0.212	0.213	0.230	0.231	0.248	0.249	0.266
0.127	±0.003	1.2770	1.4280	0.166	0.183	0.184	0.201	0.202	0.219	0.220	0.237	0.238	0.255	0.256	0.273
0.132	±0.003	1.1850	1.3200	0.172	0.191	0.192	0.211	0.212	0.231	0.232	0.251	0.252	0.271	0.272	0.291
0.140	±0.003	1.0550	1.1700	0.182	0.201	0.202	0.221	0.222	0.241	0.242	0.261	0.262	0.281	0.282	0.301
0.150	±0.003	0.9287	1.0158	0.194	0.215	0.216	0.237	0.238	0.259	0.260	0.281	0.282	0.300	0.300	0.320
0.160	±0.003	0.8122	0.8906	0.206	0.227	0.228	0.249	0.250	0.271	0.272	0.293	0.294	0.315	0.316	0.337
0.170	±0.003	0.7210	0.7871	0.218	0.241	0.242	0.265	0.266	0.289	0.290	0.313	0.314	0.337	0.338	0.361
0.180	±0.003	0.6444	0.7007	0.230	0.253	0.254	0.277	0.282	0.303	0.304	0.325	0.326	0.349	0.350	0.373
0.190	±0.003	0.5793	0.6277	0.241	0.265	0.266	0.290	0.291	0.315	0.316	0.340	0.341	0.365	0.366	0.390
0.200	±0.003	0.5237	0.5657	0.253	0.277	0.278	0.302	0.303	0.327	0.328	0.352	0.353	0.377	0.378	0.402
0.220	±0.003	0.4342	0.4664	0.277	0.303	0.304	0.330	0.331	0.357	0.358	0.384	0.385	0.411	0.412	0.438
0.250	±0.004	0.3345	0.3628	0.313	0.338	0.340	0.370	0.373	0.400	0.403	0.430	0.433	0.460	0.463	0.490
0.300	±0.004	0.2319	0.2505	0.370	0.400	0.401	0.431	0.432	0.462	0.463	0.493	0.494	0.524	0.525	0.555
0.350	±0.004	0.1722	0.1833	0.424	0.454	0.455	0.485	0.486	0.516	0.517	0.547	0.548	0.578	0.579	0.609
0.400	±0.005	0.1316	0.1407	0.479	0.509	0.510	0.540	0.541	0.571	0.572	0.602	0.603	0.633	--	--
0.450	±0.005	0.1042	0.1109	0.534	0.564	0.565	0.595	0.596	0.626	0.627	0.657	0.658	0.688	--	--
0.500	±0.005	0.0846	0.0895	0.588	0.628	0.629	0.669	0.670	0.700	0.701	0.738	--	--	--	--
0.550	±0.006	0.0698	0.0742	0.650	0.690	0.690	0.730	0.730	0.768	0.768	0.802	--	--	--	--
0.600	±0.006	0.0587	0.0622	0.710	0.739	0.740	0.780	0.781	0.820	0.822	0.855	--	--	--	--

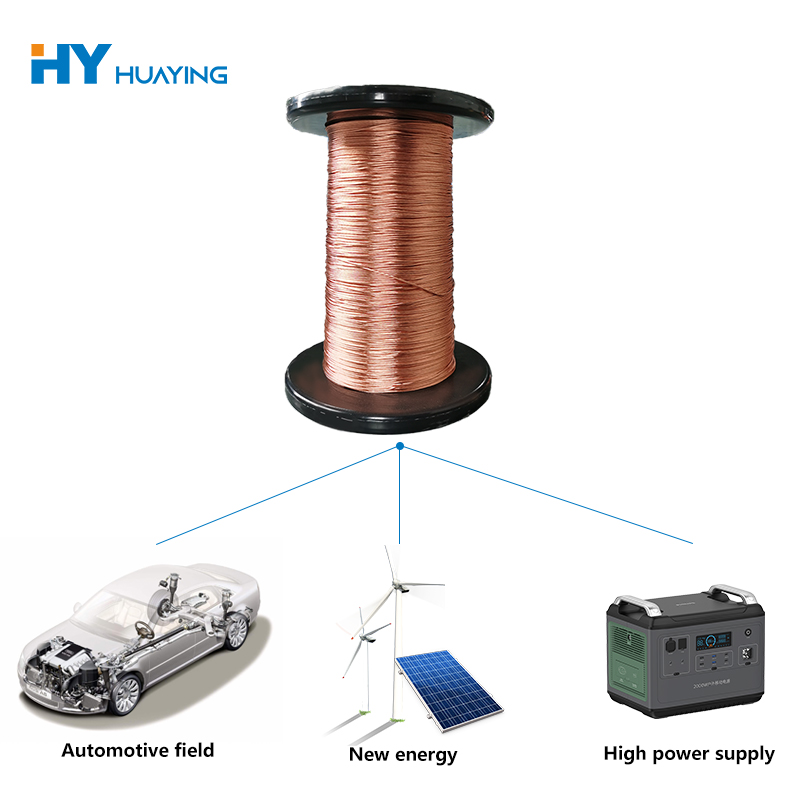

Qaybta la xidhiidha
